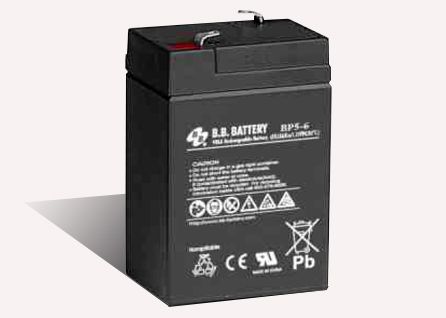

![BP Series - For General Use BP Series - For General Use](http://www.bb-battery.com/china/image/cache/data/product/agm/BP_56p-446x318.jpg)
![BP Series - For General Use](http://www.bb-battery.com/china/image/cache/data/product/agm/BP_56p-103x103.jpg)
BP5-6 BP Series - For General Use
额定容量: | 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr) |
重量: | 0.905kg (1.995lbs) |
尺寸: |
70L x 48W x102H x 107TH (mm) 2.76L x 1.89W x4.02H x 4.21TH (inch) |
BP5-6 BP Series - For General Use
• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.
Internal Resistance: ≦13.5mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) BP5-6 Optional: Flame Retardant ABS(UL 94-V0) BP5-6FR
![](http://www.bb-battery.com/image/data/product/agm_spc/SPC_BP5-6.jpg)
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 6 V
额定容量 : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 0.905kg (1.995lbs)
尺寸 : 70L x 48W x102H x 107TH (mm)
2.76L x 1.89W x4.02H x 4.21TH (inch)
端子类型 : T1 (Faston Tab 187) T2 is optional
5秒钟放电最大电流 :75 A (5 sec.)
最大充电电流 : 1.50 A
应用范围 : 不间断电源, 玩具车, 应急灯, 可充电手电筒, 电动风扇
