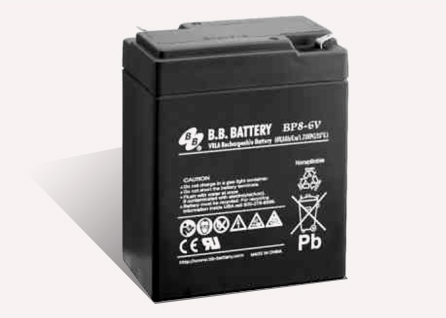

BP8-6V BP Series - For General Use

电压： 6 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	1.55kg (3.42lbs)

尺寸：	98L x 56W x118H x 118TH (mm) 3.86L x 2.20W x4.65H x 4.65TH (inch)

应用范围：不间断电源, 玩具车, 应急灯

端子类型： T1, T2 (optional)

BP8-6V   BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

						Internal Resistance: ≦9mΩ ( Fully Charged )

						Operating Temperature Range:

						Charge 0 C~40 C(32 F~104 F)

						 Discharge -20 C~50 C(-4 F~122 F)

						Storage. -20 C~40 C(-4 F~104 F)

						Container Material:  Standard: ABS( UL 94-HB) BP8-6V  Optional: Flame Retardant ABS(UL 94-V0) BP8-6FRV

							All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 1.55kg (3.42lbs)
尺寸 : 98L x 56W x118H x 118TH (mm)
                        3.86L x 2.20W x4.65H x 4.65TH (inch)
端子类型 : T1 (Faston Tab 187) T2 is optional
5秒钟放电最大电流 :120 A (5 sec.)
最大充电电流 : 2.4 A
应用范围 :
   不间断电源, 玩具车, 应急灯
