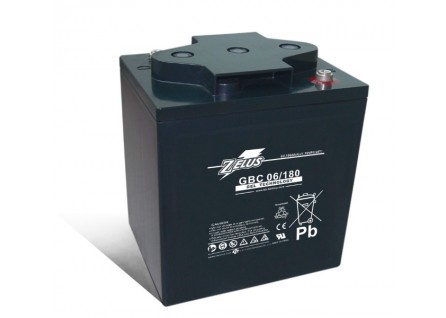

GBC6/180 Zelus GEL Battery

电压： 6 V

额定容量：

1(5Hr)

重量：	32.8kg (72.31lbs)

尺寸：	244.0L x 190.0W x275.0H x 275.0TH (mm) 9.61L x 7.48W x10.83H x 10.83TH (inch)

应用范围：高尔夫球车, 自动清扫器, 轮椅

端子类型： I3, I4 (optional)

GBC6/180   Zelus GEL Battery

	• GBC is designed with solid lead plated and gelled electrolyte technology.

	• A deep-cycle lead-acid battery is designed to deliver a maximum capacity and cycles as discharging.

	• High temperature stability, mechanical strength and low acid displacement.

	• Superior performance with deep discharges.

	• Patented safety valve to have accurate pressure operating for long battery life.

					Internal Resistance: ≦2.5mΩ ( Fully Charged )

					Self Discharge: <2% per month (25°C)

					Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

					Container Material:  Standard: ABS( UL 94-HB) GBC 6/180  Optional: Flame Retardant ABS(UL 94»VO) GBC 6/180FR

					All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
额定容量 :  1(5Hr)
重量 : 32.8kg (72.31lbs)
尺寸 : 244.0L x 190.0W x275.0H x 275.0TH (mm)
                        9.61L x 7.48W x10.83H x 10.83TH (inch)
端子类型 : l3(l4 ia optional)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 36.0 A
应用范围 :
   高尔夫球车, 自动清扫器, 轮椅
