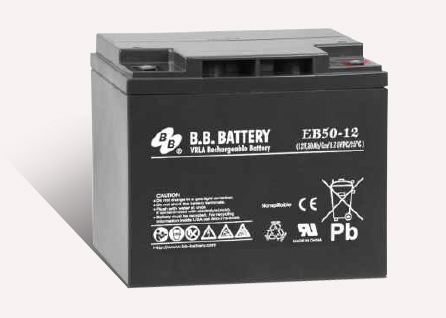

EB50-12 EB Series - For Mobility Use

电压： 12 V

额定容量：

1(20Hr)

重量：	16.5kg (36.38lbs)

尺寸：	197 L x 165 W x171 H x 171 TH (mm) 7.76L x 6.50W x6.73H x 6.73TH (inch)

应用范围：高尔夫球车, 不间断电源, 电动自行车, 轮椅, 割草机, 电动踏板车

端子类型： I2

EB50-12   EB Series - For Mobility Use

	• Absorbent Glass Mat technology for efficient gas recombination

	• Maintenance free(no water topping-up required)

	• No free acid(Non-spillable battery)

	• Can be used in any orientation(excluding used inverted)

	• The battery is designed for high power & high cyclic usage

	• Low self-discharge rate, lower than 3% capacity loss per month

		Internal Resistance: ≦6mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) EB50-12  Optional: Flame Retardant ABS(UL 94-V0) EB50-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr)
重量 : 16.5kg (36.38lbs)
尺寸 : 197	L x 165	W x171	H x 171	TH (mm)
                        7.76L x 6.50W x6.73H x 6.73TH (inch)
端子类型 : I2 (M6 Female thread)
5秒钟放电最大电流 :750 A (5 sec.)
最大充电电流 : 15 A
应用范围 :
   高尔夫球车, 不间断电源, 电动自行车, 轮椅, 割草机, 电动踏板车
