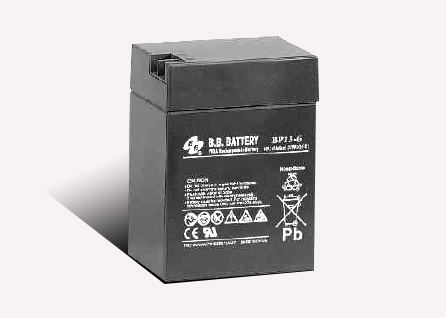

BP13-6 S BP Series - For General Use

电压： 6 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	2.50kg (5.51lbs)

尺寸：	108L x 71W x140H x 140TH (mm) 4.25L x 2.80W x5.51H x 5.51TH (inch)

应用范围：不间断电源, 玩具车, 应急灯, 可充电手电筒, 电动风扇

端子类型：

BP13-6 S   BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

			Internal Resistance: ≦8mΩ ( Fully Charged )

			Operating Temperature Range:

			Charge 0°C~40°C(32°F~104°F)

			 Discharge -20°C~50°C(-4°F~122°F)

			Storage. -20°C~40°C(-4°F~104°F)

			Container Material:  Standard: ABS( UL 94-HB) BP13-6 S  Optional: Flame Retardant ABS(UL 94-V0) BP13-6FR S

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 2.50kg (5.51lbs)
尺寸 : 108L x 71W x140H x 140TH (mm)
                        4.25L x 2.80W x5.51H x 5.51TH (inch)
端子类型 : T3 (Faston Tab 187, 250)
5秒钟放电最大电流 :30 A (5 sec.)
最大充电电流 : 3.9 A
应用范围 :
   不间断电源, 玩具车, 应急灯, 可充电手电筒, 电动风扇
