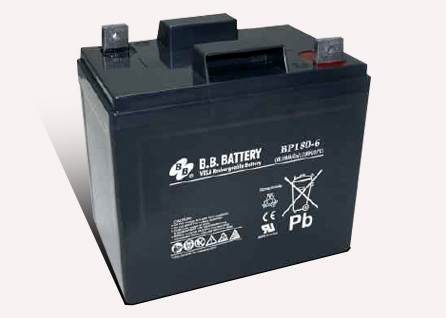

BP180-6 BP Series - For General Use

电压： 6 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	28.8kg (63.5lbs)

尺寸：	260L x 171W x220H x 244TH (mm) 10.24L x 6.73 W x8.66H x 9.61TH (inch)

应用范围：不间断电源, 电信行业

端子类型： I3 (optional)

BP180-6    BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Flame-arrestor is installed to ensure safety.

	• Absorbent Glass Mat technology for efficient gas recombination.

			Internal Resistance: ≦2.5mΩ ( Fully Charged )

			Operating Temperature Range:

			Charge 0°C~40°C(32°F~104°F)

			 Discharge -20°C~50°C(-4°F~122°F)

			Storage. -20°C~40°C(-4°F~104°F)

			Container Material:  Standard: ABS( UL 94-HB) BP180-6  Optional: Flame Retardant ABS(UL 94-V0) BP180-6FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 28.8kg (63.5lbs)
尺寸 : 260L x 171W x220H x 244TH (mm)
                        10.24L x 6.73	W x8.66H x 9.61TH (inch)
端子类型 : B9 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 54 A
应用范围 :
   不间断电源, 电信行业
