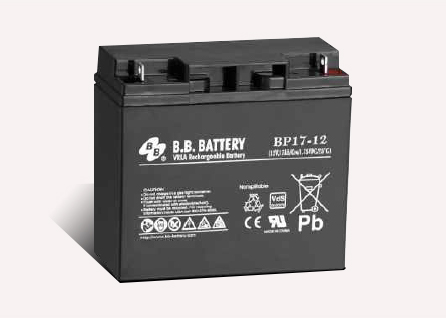

BP17-12 BP Series - For General Use

电压： 12 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	6.15kg (13.56lbs)

尺寸：	181L x 76W x166H x 166TH (mm) 7.13L x 2.99W x6.54H x 6.54TH (inch)

应用范围：不间断电源, 应急灯, 割草机, 摄录影机, 鱼捞作业灯

端子类型：

BP17-12   BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦16mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BP17-12  Optional: Flame Retardant ABS(UL 94-V0) BP17-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 6.15kg (13.56lbs)
尺寸 : 181L x 76W x166H x 166TH (mm)
                        7.13L x 2.99W x6.54H x 6.54TH (inch)
端子类型 : B1 (Fitting M5 bolt & nut) , T2 and I1 are optional
5秒钟放电最大电流 :255 A (5 sec.)
最大充电电流 : 5.1 A
应用范围 :
   不间断电源, 应急灯, 割草机, 摄录影机, 鱼捞作业灯
