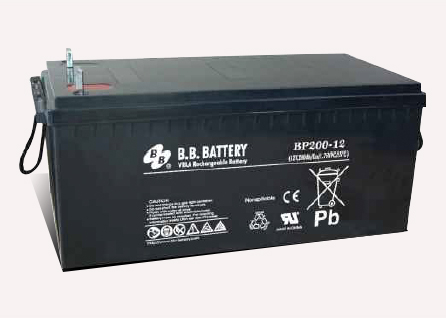

BP200-12 BP Series - For General Use

电压： 12 V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量：	61.5kg (135.6lbs)

尺寸：	522L x 202W x216H x 240TH (mm) 20.55L x 7.95W x8.50H x 9.45TH (inch)

应用范围：不间断电源, 电信行业

端子类型： I3 (optional), B9

BP200-12   BP Series - For General Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Flame-arrestor is installed to ensure safety.

	• Carry handles for easy installation.

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦2.5mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BP200-12  Optional: Flame Retardant ABS(UL 94-V0) BP200-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 : 61.5kg (135.6lbs)
尺寸 : 522L x 202W x216H x 240TH (mm)
                        20.55L x 7.95W x8.50H x 9.45TH (inch)
端子类型 : B9 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 60 A
应用范围 :
   不间断电源, 电信行业
