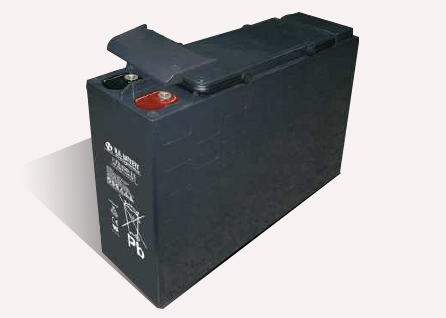

FTB100-12 FTB Series - Front Terminal Battery

电压： 12 V

额定容量：

1(10Hr), 1(1Hr)

重量：	36.8kg (81.3lbs)

尺寸：	394L x 110W x272H x 265TH (mm) 15.51L x 4.33W x10.74H x 11.2TH (inch)

应用范围：不间断电源, 电信行业, 宽带通讯, 电气设备, 铁路信号灯

端子类型： I2

FTB100-12   FTB Series - Front Terminal Battery

	• Absorbent Glass Mat technology for efficient gas recombination

	• Front accessible terminal for ease of assembly

	• Carry handles for ease of installation

	• Strengthened rib design to maintain structural integrity

	• Flame-arrestor is installed to ensure safety

	• One-way self-resealing safety valve for long life guarantee

		Internal Resistance: ≦3.5mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) FTB100-12  Optional: Flame Retardant ABS(UL 94-V0) FTB100-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(10Hr), 1(1Hr)
重量 : 36.8kg (81.3lbs)
尺寸 : 394L x 110W x272H x 265TH (mm)
                        15.51L x 4.33W x10.74H x 11.2TH (inch)
端子类型 : I2 (M6 Female Thread)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 25 A
应用范围 :
   不间断电源, 电信行业, 宽带通讯, 电气设备, 铁路信号灯
