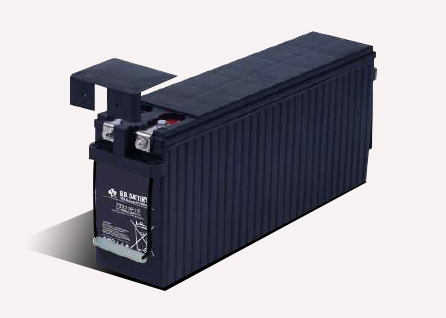

FTB125-12 FTB Series - Front Terminal Battery

电压： 12 V

额定容量：

1(10Hr), 1(1Hr)

重量：	46.4kg (102.3lbs)

尺寸：	560 L x 125W x232.6H x 255TH (mm) 22.05L x 4.92W x9.16H x 10.04 TH (inch)

应用范围：不间断电源, 电信行业, 宽带通讯, 电气设备, 铁路信号灯

端子类型： L1

FTB125-12   FTB Series - Front Terminal Battery

	• Absorbent Glass Mat technology for efficient gas recombination

	• Thermally welded case-to-cover bond to ensure a leak-proof case

	• Front accessible terminal for ease of assembly

	• Carry handles for ease of installation

	• Strengthened rib design to maintain structural integrity

	• Flame-arrestor is installed to ensure safety

	• Battery design allows for 48VDC configuration in a standard 23'' rack

	• One-way self-resealing safety valve for long life guarantee

		Internal Resistance: ≦2.9mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: Standard: PP( UL 94-HB) FTB125-12  Optional: Flame Retardant PP(UL 94-V0) FTB125-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(10Hr), 1(1Hr)
重量 : 46.4kg (102.3lbs)
尺寸 : 560	L x 125W x232.6H x 255TH (mm)
                        22.05L x 4.92W x9.16H x 10.04	TH (inch)
端子类型 : L1 (M8 Male Stud)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 31.3 A
应用范围 :
   不间断电源, 电信行业, 宽带通讯, 电气设备, 铁路信号灯
