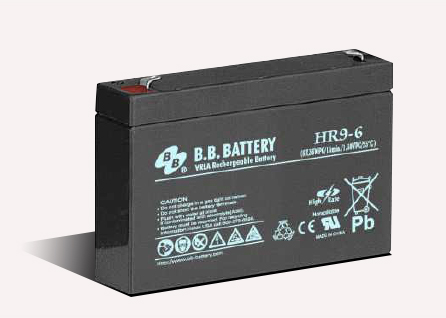

HR9-6 HR Series - For High Rate Use

电压： 6 V

重量：	1.40kg (3.09lbs)

尺寸：	151L x 34W x94H x 100TH (mm) 5.94L x 1.34W x3.70H x 3.94TH (inch)

应用范围：不间断电源, 玩具车, 实验室设备, 电源包, 鱼捞作业灯

端子类型： T1 (optional), T2

HR9-6   HR Series - For High Rate Use

		• Maintenance free(no water topping-up required).

		• No free acid(Non-spillable battery).

		• Low self-discharge rate, lower than 3% capacity loss per month.

		• Can be used in any orientation(excluding used inverted).

		• The battery is designed for high rate usage.

		• Absorbent Glass Mat technology for efficient gas recombination.

		• The power density at 5 min~15min discharging rate is 30% higher than BP series.

		Internal Resistance: ≦7.5mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) HR9-6  Optional: Flame Retardant ABS(UL 94-V0) HR9-6FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
重量 : 1.40kg (3.09lbs)
尺寸 : 151L x 34W x94H x 100TH (mm)
                        5.94L x 1.34W x3.70H x 3.94TH (inch)
端子类型 : T2 (Faston Tab 250) T1 is optional
5秒钟放电最大电流 :120 A (5 sec.)
最大充电电流 : 2.4 A
应用范围 :
   不间断电源, 玩具车, 实验室设备, 电源包, 鱼捞作业灯
