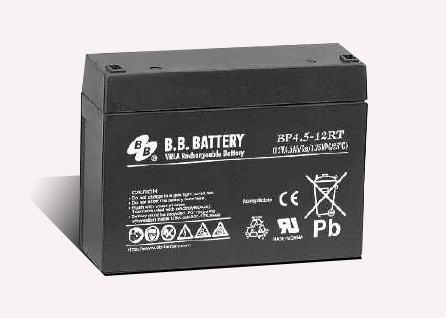

BP4.5-12RT RT Series - For Recess Terminal Use

电压： 12V

额定容量：

1(20Hr), 1(10Hr), 1(5Hr)

重量：	1.78kg (3.92lbs)

尺寸：	140L x 48W x102H x 104TH (mm) 5.51L x 1.89W x4.02H x 4.09TH (inch)

应用范围：不间断电源, 玩具车, 电动风扇, 电子门铃

端子类型： RT, (optional)

BP4.5-12RT   RT Series - For Recess Terminal Use

	• Absorbent Glass Mat technology for efficient gas recombination

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

		Internal Resistance: ≦42mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BP4.5-12RT  Optional: Flame Retardant ABS(UL 94-V0) BP4.5-12RTFR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12V
额定容量 :  1(20Hr), 1(10Hr), 1(5Hr)
重量 : 1.78kg (3.92lbs)
尺寸 : 140L x 48W x102H x 104TH (mm)
                        5.51L x 1.89W x4.02H x 4.09TH (inch)
端子类型 : +250 Faston/-187 Faston
5秒钟放电最大电流 :120 A (5 sec.)
最大充电电流 : 2.4 A
应用范围 :
   不间断电源, 玩具车, 电动风扇, 电子门铃
