MSB Series - 2V, For Telecomm Use
MSB Series - 2V, For Telecomm Use

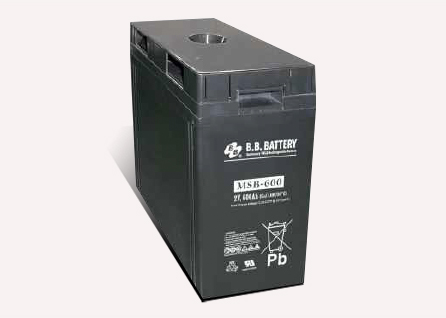

MSB-600 (2V, 600Ah) MSB Series - 2V, For Telecomm Use

电压: 2 V
额定容量 1(10Hr), 1(1Hr)
重量 46.0kg (101.4 lbs)
尺寸 301L x 175W x331H x 359TH (mm)
11.86L x 6.89 W x13.03 H x 14.13TH (inch)
应用范围: 不间断电源, 电信行业, 储能系统, 电信局
端子类型: I3 (optional),  B6

MSB-600 (2V, 600Ah) MSB Series - 2V, For Telecomm Use

• Sealed structure, no electrolyte leakage or spill.
• High performance alloy to secure corrosion-proof feature.
• Unique electrolyte system achieves maximum service life.
• Low self-discharge rate, lower than 3% capacity loss per month.
• Special paste formula promotes the good charging acceptance.
• Electrolyte with gel technology.

Internal Resistance: ≦0.7mΩ ( Fully Charged )


Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)


Safety Valve: Opening pressure 10~35 kPa


Container Material:  Standard: Standard: ABS( UL 94-HB) MSB-600  Optional: Flame Retardant ABS(UL 94-V0) MSB-600FR






All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.




电压 : 2 V

额定容量 : 1(10Hr), 1(1Hr)

重量 : 46.0kg (101.4 lbs)

尺寸 : 301L x 175W x331H x 359TH (mm)
                        11.86L x 6.89 W x13.03 H x 14.13TH (inch)

端子类型 : B6 (Fitting M8 bolt & nut) I3 is optional

5秒钟放电最大电流 :2640 A (5 sec.)

最大充电电流 : 150 A

应用范围 : 不间断电源, 电信行业, 储能系统, 电信局
