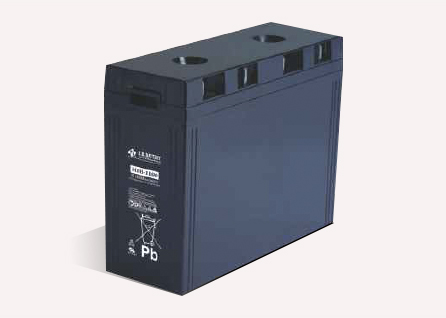

MSB-1000 (2V, 1000Ah) MSB Series - 2V, For Telecomm Use
额定容量: | 1(10Hr), 1(1Hr) |
重量: | 72.0kg (158.7 lbs) |
尺寸: |
475L x 175W x328H x 356TH (mm) 18.70L x 6.89W x12.91H x 14.02TH (inch) |
MSB-1000 (2V, 1000Ah) MSB Series - 2V, For Telecomm Use
Internal Resistance: ≦0.5mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Safety Valve: Opening pressure 10~35 kPa
Container Material: Standard: Standard: ABS( UL 94-HB) MSB-1000 Optional: Flame Retardant ABS(UL 94-V0) MSB-1000FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 2 V
额定容量 : 1(10Hr), 1(1Hr)
重量 : 72.0kg (158.7 lbs)
尺寸 : 475L x 175W x328H x 356TH (mm)
18.70L x 6.89W x12.91H x 14.02TH (inch)
端子类型 : B6 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :4000 A (5 sec.)
最大充电电流 : 250 A
应用范围 : 不间断电源, 电信行业, 储能系统, 电信局
