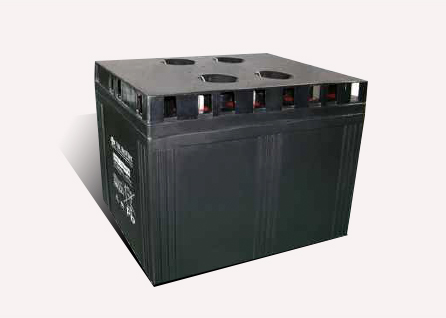

MSB-2000 (2V, 2000Ah) MSB Series - 2V, For Telecomm Use

电压： 2 V

额定容量：

1(10Hr), 1(1Hr)

重量：	153.0kg (337.3lbs)

尺寸：	490L x 350W x343H x 371TH (mm) 19.29 L x 13.78W x13.50H x 14.61TH (inch)

应用范围：不间断电源, 电信行业, 储能系统, 电信局

端子类型： B6

MSB-2000 (2V, 2000Ah)   MSB Series - 2V, For Telecomm Use

	• Sealed structure, no electrolyte leakage or spill.

	• High performance alloy to secure corrosion-proof feature.

	• Unique electrolyte system achieves maximum service life.

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Special paste formula promotes the good charging acceptance.

	• Electrolyte with gel technology.

		Internal Resistance: ≦0.4mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Safety Valve: Opening pressure 10~35 kPa

		Container Material:  Standard: Standard: ABS( UL 94-HB) MSB-2000  Optional: Flame Retardant ABS(UL 94-V0) MSB-2000FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 2 V
额定容量 :  1(10Hr), 1(1Hr)
重量 : 153.0kg (337.3lbs)
尺寸 : 490L x 350W x343H x 371TH (mm)
                        19.29	L x 13.78W x13.50H x 14.61TH (inch)
端子类型 : B6 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :7000 A (5 sec.)
最大充电电流 : 500 A
应用范围 :
   不间断电源, 电信行业, 储能系统, 电信局
