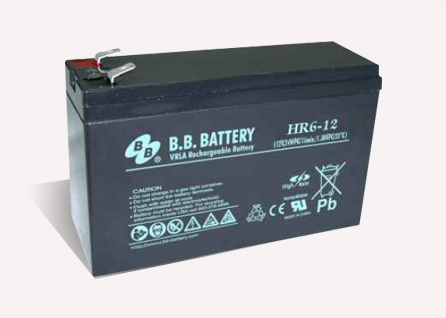

HR6-12 HR Series - For High Rate Use

电压： 12 V

重量：	2.10kg (4.63lbs)

尺寸：	151L x 51W x94H x 100TH (mm) 5.94 L x 2.01W x3.70 H x 3.94TH (inch)

应用范围：不间断电源, 玩具车, 实验室设备, 电源包

端子类型： T1, T2 (optional)

HR6-12   HR Series - For High Rate Use

		• Maintenance free(no water topping-up required).

		• No free acid(Non-spillable battery).

		• Low self-discharge rate, lower than 3% capacity loss per month.

		• Can be used in any orientation(excluding used inverted).

		• The battery is designed for high rate usage.

		• Absorbent Glass Mat technology for efficient gas recombination.

		• The power density at 5 min~15min discharging rate is 30% higher than BP series.

		Internal Resistance: ≦22mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) HR6-12  Optional: Flame Retardant ABS(UL 94-V0) HR6-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 2.10kg (4.63lbs)
尺寸 : 151L x 51W x94H x 100TH (mm)
                        5.94	L x 2.01W x3.70	H x 3.94TH (inch)
端子类型 : T1 (Faston Tab 187) T2 is optional
5秒钟放电最大电流 :82.5 A (5 sec.)
最大充电电流 : 1.65 A
应用范围 :
   不间断电源, 玩具车, 实验室设备, 电源包
