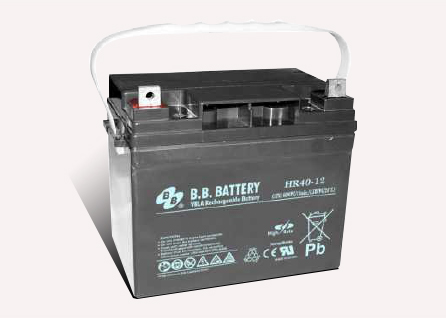

HR40-12 Handle Type HR Series - For High Rate Use

电压： 12 V

重量：	160kg (38lbs)

尺寸：	210 L x 129W x168H x 179TH (mm) 8.27L x 5.08W x6.61H x 7.05TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备

端子类型： I2 (optional), B7

HR40-12 Handle Type   HR Series - For High Rate Use

		• Maintenance free(no water topping-up required).

		• No free acid(Non-spillable battery).

		• Low self-discharge rate, lower than 3% capacity loss per month.

		• Can be used in any orientation(excluding used inverted).

		• The battery is designed for high rate usage.

		• Absorbent Glass Mat technology for efficient gas recombination.

		• The power density at 5 min~15min discharging rate is 30% higher than BP series.

		Internal Resistance: ≦6mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) HR40-12  Optional: Flame Retardant ABS(UL 94-V0) HR40-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 160kg (38lbs)
尺寸 : 210	L x 129W x168H x 179TH (mm)
                        8.27L x 5.08W x6.61H x 7.05TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :495 A (5 sec.)
最大充电电流 : 11.4 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备
