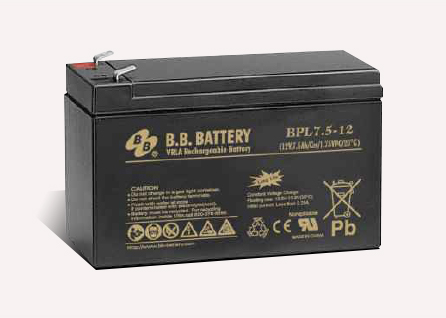

BPL7.5-12 BPL Series - For Long Life Standby Use
额定容量: | 1(20Hr), 1(5Hr) |
重量: | 2.7kg (5.95lbs) |
尺寸: |
151L x 65W x94H x 100TH (mm) 5.94L x 2.56W x3.70H x 3.94TH (inch) |
BPL7.5-12 BPL Series - For Long Life Standby Use
Internal Resistance: ≦25mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) BPL7.5-12 Optional: Flame Retardant ABS(UL 94-V0) BPL7.5-12FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 12 V
额定容量 : 1(20Hr), 1(5Hr)
重量 : 2.7kg (5.95lbs)
尺寸 : 151L x 65W x94H x 100TH (mm)
5.94L x 2.56W x3.70H x 3.94TH (inch)
端子类型 : T2 (Faston Tab 250) T1 is optional
5秒钟放电最大电流 :112.5 A (5 sec.)
最大充电电流 : 2.25 A
应用范围 : 不间断电源, 玩具车, 实验室设备, 电源包, 鱼捞作业灯
