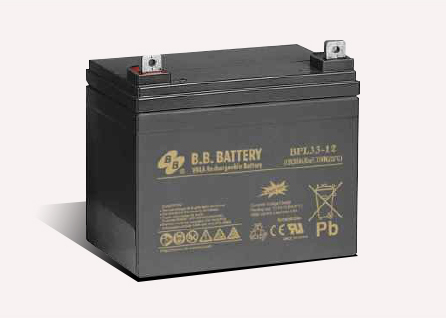

BPL33-12 Standard Type BPL Series - For Long Life Standby Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	11.50kg (25.36lbs)

尺寸：	195L x 129W x155H x 179TH (mm) 7.68L x 5.08W x6.10H x 7.05TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备

端子类型： B7

BPL33-12 Standard Type   BPL Series - For Long Life Standby Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦9.0mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BPL33-12  Optional: Flame Retardant ABS(UL 94-V0) BPL33-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 11.50kg (25.36lbs)
尺寸 : 195L x 129W x155H x 179TH (mm)
                        7.68L x 5.08W x6.10H x 7.05TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut)
5秒钟放电最大电流 :495 A (5 sec.)
最大充电电流 : 9.9 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备
