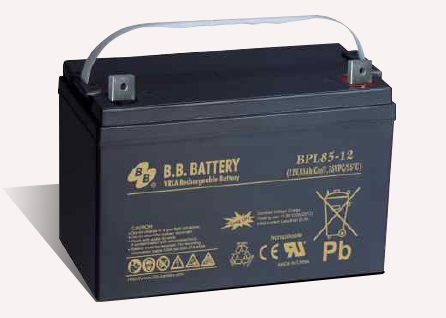

BPL85-12 BPL Series - For Long Life Standby Use
额定容量: | 1(20Hr), 1(5Hr) |
重量: | 31.20 kg (68.80lbs) |
尺寸: |
329L x 172W x215H x 238TH (mm) 12.95L x 6.77W x8.46 H x 9.37TH (inch) |
BPL85-12 BPL Series - For Long Life Standby Use
Internal Resistance: ≦4.5mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) BPL95-12 Optional: Flame Retardant ABS(UL 94-V0) BPL95-12FR
![](http://www.bb-battery.com/image/data/product/agm_spc/bpl85-12_spc.jpg)
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 12 V
额定容量 : 1(20Hr), 1(5Hr)
重量 : 31.20 kg (68.80lbs)
尺寸 : 329L x 172W x215H x 238TH (mm)
12.95L x 6.77W x8.46 H x 9.37TH (inch)
端子类型 : B3 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 28.5 A
应用范围 : 高尔夫球车, 不间断电源, 电信行业
