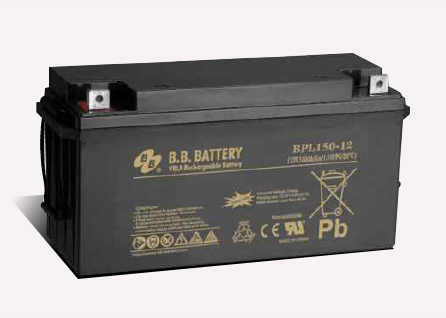

BPL150-12 BPL Series - For Long Life Standby Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	51.80kg (114.2lbs)

尺寸：	483L x 171W x240H x 240TH (mm) 19.02L x 6.73W x9.45H x 9.45TH (inch)

应用范围：不间断电源, 电信行业

端子类型： I3 (optional), B9

BPL150-12    BPL Series - For Long Life Standby Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

		Internal Resistance: ≦2.7mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) BPL150-12  Optional: Flame Retardant ABS(UL 94-V0) BPL150-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 51.80kg (114.2lbs)
尺寸 : 483L x 171W x240H x 240TH (mm)
                        19.02L x 6.73W x9.45H x 9.45TH (inch)
端子类型 : B9 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 45 A
应用范围 :
   不间断电源, 电信行业
