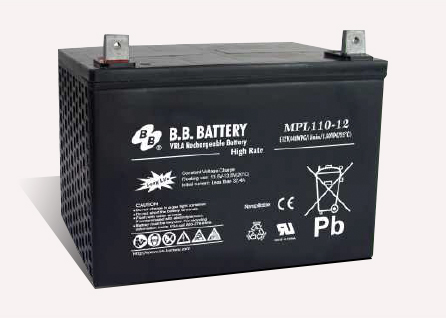

MPL110-12 Standard MPL Series - For High Rate, Long Life Standby Use

电压： 12 V

额定容量：

1(10Hr)

重量：	34.3kg (75.62lbs)

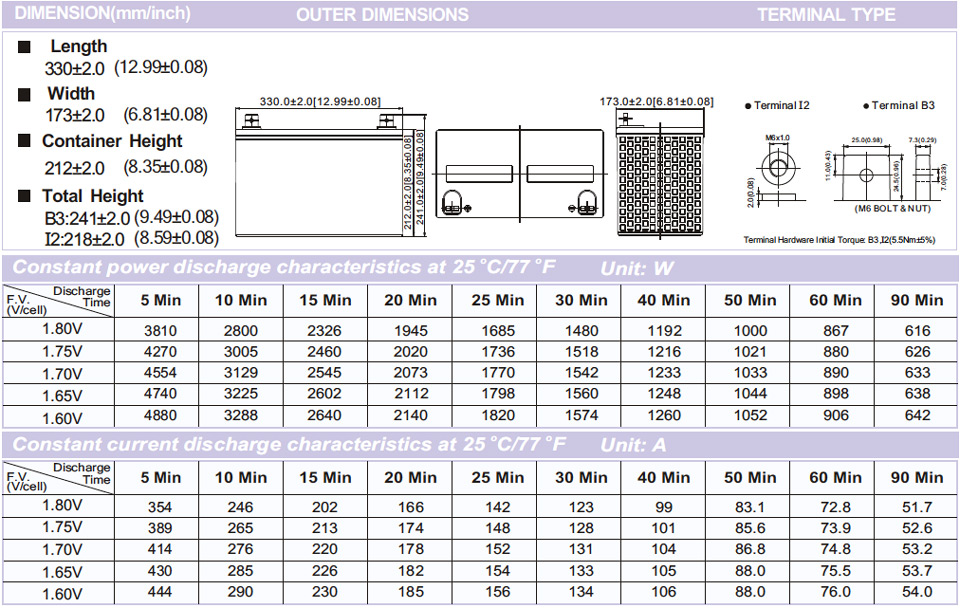

尺寸：	330L x 173W x212H x B3:241, I2:218TH (mm) 12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)

应用范围：高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备

端子类型： I2 (optional), B3

MPL110-12 Standard    MPL Series - For High Rate, Long Life Standby Use

				• Maintenance free(no water topping-up required).

				• No free acid(Non-spillable battery).

				• Low self-discharge rate,lower than 3% capacity loss per month.

				• Can be used in any orientation(excluding used inverted).

				• The battery is designed with very lower resistance and exceeding high power performance.

				• Flame-arrestor is installed to ensure safety.

				• Absorbent Glass Mat technology for efficient gas recombination.

		Cold Cranking Amp @ -18°C: 850 A

		Short Circuit Current: 2900 A

		Internal Resistance: ≦3mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0 C~40 C(32 F~104 F)

		 Discharge -20 C~50 C(-4 F~122 F)

		Storage. -20 C~40 C(-4 F~104 F)

		Container Material:  Standard: PP( UL 94-HB) MPL110-12  Optional: Flame Retardant PP(UL 94-V0) MPL110-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(10Hr)
重量 : 34.3kg (75.62lbs)
尺寸 : 330L x 173W x212H x B3:241, I2:218TH (mm)
                        12.99L x 6.81W x8.35H x B3:9.49, I2:8.59TH (inch)
端子类型 : B3 (Fitting M6 bolt & nut) I2 is optional
最大充电电流 : 26.4
应用范围 :
   高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备
