EP Series - For High Cycle Use
EP Series - For High Cycle Use

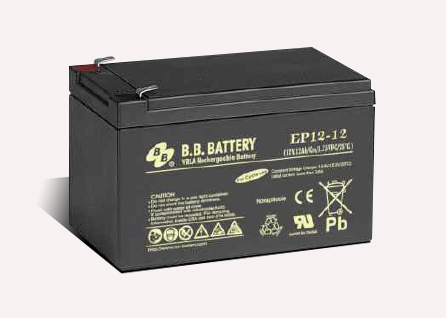

EP12-12 EP Series - For High Cycle Use

电压: 12 V
额定容量 1(20Hr), 1(5Hr)
重量 4.20kg (9.26lbs)
尺寸 151L x 98 W x94H x 98TH (mm)
5.94 L x 3.86W x3.70 H x 3.86TH (inch)
应用范围: 不间断电源, 割草机, 电源包, 鱼捞作业灯, 电动汽车
端子类型: T1 (optional),  T2

EP12-12 EP Series - For High Cycle Use

• Absorbent Glass Mat technology for efficient gas recombination
• Maintenance free(no water topping-up required)
• No free acid(Non-spillable battery)
• Can be used in any orientation(excluding used inverted)
• The battery is designed for heavy duty cyclic application
• Low self-discharge rate, lower than 3% capacity loss per month

Internal Resistance: ≦16mΩ ( Fully Charged )


Operating Temperature Range:

Charge 0 C~40 C(32 F~104 F)

 Discharge -20 C~50 C(-4 F~122 F)

Storage. -20 C~40 C(-4 F~104 F)


Container Material:  Standard: ABS( UL 94-HB) EP12-12  Optional: Flame Retardant ABS(UL 94-V0) EP12-12FR




All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.




电压 : 12 V

额定容量 : 1(20Hr), 1(5Hr)

重量 : 4.20kg (9.26lbs)

尺寸 : 151L x 98 W x94H x 98TH (mm)
                        5.94 L x 3.86W x3.70 H x 3.86TH (inch)

端子类型 : T2(Faston Tab 250) T1 is optional

5秒钟放电最大电流 :180 A (5 sec.)

最大充电电流 : 3.6 A

应用范围 : 不间断电源, 割草机, 电源包, 鱼捞作业灯, 电动汽车
