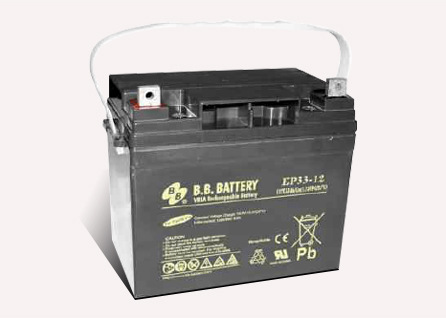

EP33-12 Handle Typ EP Series - For High Cycle Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	11.50kg (25.36lbs)

尺寸：	210L x 129W x168H x 179TH (mm) 8.27L x 5.08W x6.61H x 7.05TH (inch)

应用范围：高尔夫球车, 轮椅, 割草机

端子类型： I2 (optional), B7

EP33-12 Handle Typ   EP Series - For High Cycle Use

	• Absorbent Glass Mat technology for efficient gas recombination

	• Maintenance free(no water topping-up required)

	• No free acid(Non-spillable battery)

	• Can be used in any orientation(excluding used inverted)

	• The battery is designed for heavy duty cyclic application

	• Low self-discharge rate, lower than 3% capacity loss per month

		Internal Resistance: ≦9mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0 C~40 C(32 F~104 F)

		 Discharge -20 C~50 C(-4 F~122 F)

		Storage. -20 C~40 C(-4 F~104 F)

		Container Material:  Standard: ABS( UL 94-HB) EP33-12  Optional: Flame Retardant ABS(UL 94-V0) EP33-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 11.50kg (25.36lbs)
尺寸 : 210L x 129W x168H x 179TH (mm)
                        8.27L x 5.08W x6.61H x 7.05TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :495 A (5 sec.)
最大充电电流 : 9.9 A
应用范围 :
   高尔夫球车, 轮椅, 割草机
