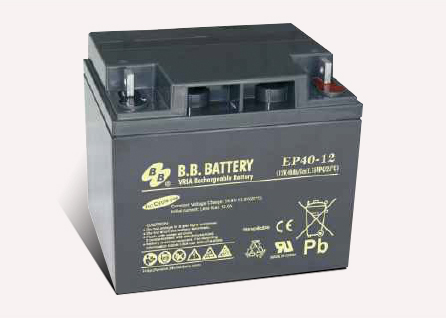

EP40-12 EP Series - For High Cycle Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	14.60kg (32.19lbs)

尺寸：	197 L x 165W x171H x 171TH (mm) 7.76 L x 6.50W x6.73 H x 6.73TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 电动汽车

端子类型： I1 (optional), I2 (optional), B2

EP40-12    EP Series - For High Cycle Use

	• Absorbent Glass Mat technology for efficient gas recombination

	• Maintenance free(no water topping-up required)

	• No free acid(Non-spillable battery)

	• Can be used in any orientation(excluding used inverted)

	• The battery is designed for heavy duty cyclic application

	• Low self-discharge rate, lower than 3% capacity loss per month

		Internal Resistance: ≦8mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0 C~40 C(32 F~104 F)

		 Discharge -20 C~50 C(-4 F~122 F)

		Storage. -20 C~40 C(-4 F~104 F)

		Container Material:  Standard: ABS( UL 94-HB) EP40-12  Optional: Flame Retardant ABS(UL 94-V0) EP40-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 14.60kg (32.19lbs)
尺寸 : 197	L x 165W x171H x 171TH (mm)
                        7.76	L x 6.50W x6.73	H x 6.73TH (inch)
端子类型 : B2 (Fitting M5 bolt & nut) , I1 and I2 are optional
5秒钟放电最大电流 :600 A (5 sec.)
最大充电电流 : 12 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 电动汽车
