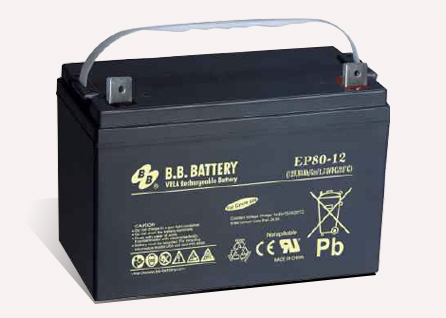

EP80-12 EP Series - For High Cycle Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	31.20kg (68.80 lbs)

尺寸：	329L x 172W x215 H x 238TH (mm) 12.95L x 6.77 W x8.46 H x 9.37TH (inch)

应用范围：高尔夫球车, 不间断电源, 电信行业, 电动汽车

端子类型： I2 (optional), B3

EP80-12    EP Series - For High Cycle Use

	• Absorbent Glass Mat technology for efficient gas recombination

	• Maintenance free(no water topping-up required)

	• No free acid(Non-spillable battery)

	• Can be used in any orientation(excluding used inverted)

	• The battery is designed for heavy duty cyclic application

	• Low self-discharge rate, lower than 3% capacity loss per month

		Internal Resistance: ≦5.0mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0 C~40 C(32 F~104 F)

		 Discharge -20 C~50 C(-4 F~122 F)

		Storage. -20 C~40 C(-4 F~104 F)

		Container Material:  Standard: ABS( UL 94-HB) EP80-12  Optional: Flame Retardant ABS(UL 94-V0) EP80-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 31.20kg (68.80	lbs)
尺寸 : 329L x 172W x215	H x 238TH (mm)
                        12.95L x 6.77	W x8.46	H x 9.37TH (inch)
端子类型 : B3 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :650 A (5 sec.)
最大充电电流 : 19.5 A
应用范围 :
   高尔夫球车, 不间断电源, 电信行业, 电动汽车
