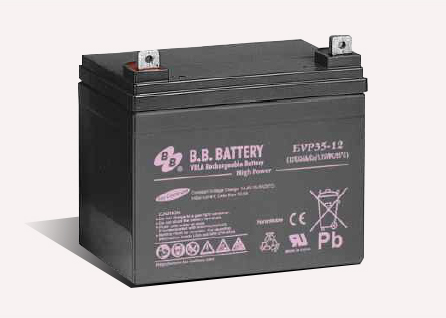

EVP35-12 Standard Type EVP Series - For High Power, High Cycle Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	12.50kg (27.56 lbs)

尺寸：	195 L x 129 W x155H x 179TH (mm) 7.68L x 5.08 W x6.10H x 7.05TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备, 电动汽车

端子类型： B7

EVP35-12 Standard Type   EVP Series - For High Power, High Cycle Use

	• Absorbent Glass Mat technology for efficient gas recombination.

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for heavy duty cyclic application.

		Internal Resistance: ≦6mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) EVP35-12  Optional: Flame Retardant ABS(UL 94-V0) EVP35-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 12.50kg (27.56	lbs)
尺寸 : 195	L x 129	W x155H x 179TH (mm)
                        7.68L x 5.08	W x6.10H x 7.05TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut)
5秒钟放电最大电流 :525 A (5 sec.)
最大充电电流 : 10.5 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备, 电动汽车
