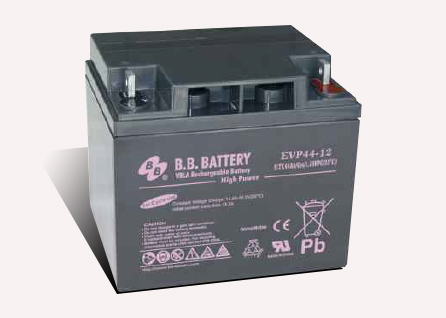

EVP44-12 EVP Series - For High Power, High Cycle Use

电压： 12 V

额定容量：

1(20Hr), 1(5Hr)

重量：	15.50kg (34.18lbs)

尺寸：	197L x 165W x171 H x 171TH (mm) 7.76L x 6.50W x6.73H x 6.73TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备

端子类型： I1 (optional), I2 (optional), B2

EVP44-12    EVP Series - For High Power, High Cycle Use

	• Absorbent Glass Mat technology for efficient gas recombination.

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Low self-discharge rate, lower than 3% capacity loss per month.

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for heavy duty cyclic application.

		Internal Resistance: ≦5mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) EVP44-12  Optional: Flame Retardant ABS(UL 94-V0) EVP44-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(5Hr)
重量 : 15.50kg (34.18lbs)
尺寸 : 197L x 165W x171	H x 171TH (mm)
                        7.76L x 6.50W x6.73H x 6.73TH (inch)
端子类型 : B2 (Fitting M5 bolt & nut) , I1 and I2 are optional
5秒钟放电最大电流 :525 A (5 sec.)
最大充电电流 : 10.5 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备
