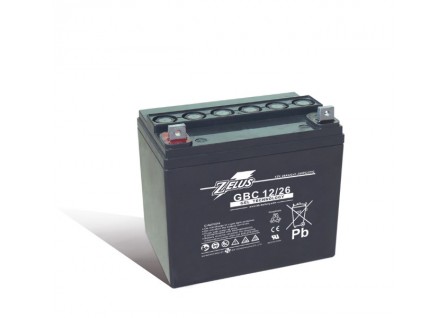

GBC12/26 Zelus GEL Battery

电压： 12 V

额定容量：

1(5Hr)

重量：	11.3kg (24.91lbs)

尺寸：	195L x 129W x168.7H x 178.6TH (mm) 6.78L x 5.08W x6.64H x 7.03TH (inch)

应用范围：高尔夫球车, 自动清扫器, 轮椅, 房车, 可再生能源

端子类型： I2 (optional), B7

GBC12/26   Zelus GEL Battery

		• GBC is designed with solid lead plated and gelled electrolyte technology.

		• A deep-cycle lead-acid battery is designed to deliver a maximum capacity and cycles as discharging.

		• High temperature stability, mechanical strength and low acid displacement.

		• Superior performance with deep discharges.

		• Patented safety valve to have accurate pressure operating for long battery life.

	Internal Resistance: ≦9mΩ ( Fully Charged )

	Self Discharge: <2% per month (25°C)

	Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

		Container Material:  Standard: ABS( UL 94-HB) GBC 12/26  Optional: Flame Retardant ABS(UL 94»VO) GBC 12/26FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(5Hr)
重量 : 11.3kg (24.91lbs)
尺寸 : 195L x 129W x168.7H x 178.6TH (mm)
                        6.78L x 5.08W x6.64H x 7.03TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :450 A (5 sec.)
最大充电电流 : 5.2 A
应用范围 :
   高尔夫球车, 自动清扫器, 轮椅, 房车, 可再生能源
