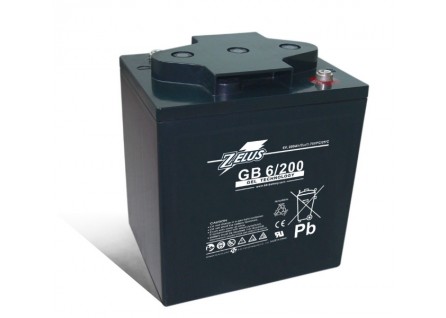

GB6/200 Zelus GEL Battery

电压： 6 V

额定容量：

1(20Hr), 1(10Hr)

重量：	32.8kg (72.3lbs)

尺寸：	224.0L x 190.0W x275.0H x 275.0TH (mm) 9.61L x 7.48W x10.83H x 10.83TH (inch)

应用范围：不间断电源, 应急灯, 保全系统, 医疗设备, 电信行业

端子类型： I3, I4 (optional)

GB6/200   Zelus GEL Battery

	• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.

	• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.

	• Superior performance with deep discharges.

	• Patented safety valve to have accurate pressure operating for long battery life.

	Internal Resistance: ≦2.5mΩ ( Fully Charged )

	Self Discharge: <2% per month (25°C)

	Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

		Container Material:  Standard: ABS( UL 94-HB) GB 6/200  Optional: Flame Retardant ABS(UL 94»VO) GB 6/200FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 6 V
额定容量 :  1(20Hr), 1(10Hr)
重量 : 32.8kg (72.3lbs)
尺寸 : 224.0L x 190.0W x275.0H x 275.0TH (mm)
                        9.61L x 7.48W x10.83H x 10.83TH (inch)
端子类型 : I3 (I4 is optional)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 40.0 A
应用范围 :
   不间断电源, 应急灯, 保全系统, 医疗设备, 电信行业
