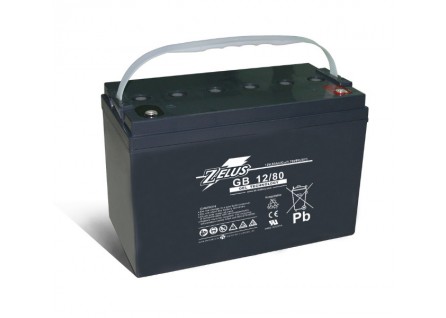

GB12/80 Zelus GEL Battery

电压： 12 V

额定容量：

1(20Hr), 1(10Hr)

重量：	29.5kg (65.04lbs)

尺寸：	329L x 172W x214.5H x 219.0TH (mm) 12.95L x 6.77W x8.44H x 8.60TH (inch)

应用范围：警报器, 不间断电源, 应急灯, 医疗设备, 电信行业

端子类型： I2

GB12/80   Zelus GEL Battery

	• The sulfuric acid is mixed with silica fume, which makes the resulting mass gel-like and immobile.

	• Increased durability and deep cycle ability for heavy demand. High temperature stability, mechanical strength and low acid displacement.

	• Superior performance with deep discharges.

	• Patented safety valve to have accurate pressure operating for long battery life.

	Internal Resistance: ≦6mΩ ( Fully Charged )

	Self Discharge: <2% per month (25°C)

	Operating Temperature Range:  -20°C~55°C(-4°F~131°F)

		Container Material:  Standard: ABS( UL 94-HB) GB 12/80  Optional: Flame Retardant ABS(UL 94-VO) GB 12/80FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr)
重量 : 29.5kg (65.04lbs)
尺寸 : 329L x 172W x214.5H x 219.0TH (mm)
                        12.95L x 6.77W x8.44H x 8.60TH (inch)
端子类型 : I2
5秒钟放电最大电流 :700 A (5 sec.)
最大充电电流 : 16.0 A
应用范围 :
   警报器, 不间断电源, 应急灯, 医疗设备, 电信行业
