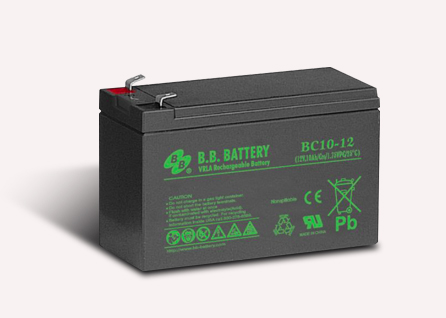

BC10-12 BC Series

电压： 12 V

额定容量：

1(20Hr)

重量：	3.0kg (6.61lbs)

尺寸：	151L x 65W x112H x 117TH (mm) 5.94 L x 2.56W x4.41H x 4.61TH (inch)

应用范围：不间断电源, 实验室设备

端子类型： T1 (optional), T2

BC10-12   BC Series

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

					Internal Resistance: ≦25mΩ ( Fully Charged )

					Operating Temperature Range:

					Charge 0°C~40°C(32°F~104°F)

					 Discharge -20°C~50°C(-4°F~122°F)

					Storage. -20°C~40°C(-4°F~104°F)

					Container Material:  Standard: ABS( UL 94-HB) BC10-12  Optional: Flame Retardant ABS(UL 94-V0) BC10-12FR

					All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr)
重量 : 3.0kg (6.61lbs)
尺寸 : 151L x 65W x112H x 117TH (mm)
                        5.94	L x 2.56W x4.41H x 4.61TH (inch)
端子类型 : T2 (Faston Tab 250) T1 is optional
5秒钟放电最大电流 :150 A (5 sec.)
最大充电电流 : 3.00 A
应用范围 :
   不间断电源, 实验室设备
