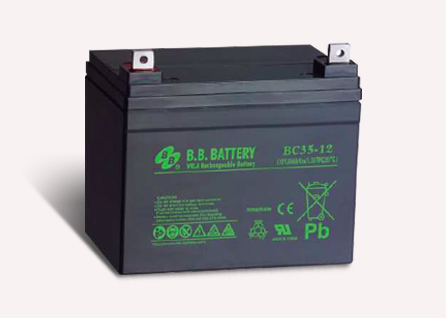

BC35-12 Standard BC Series

电压： 12 V

额定容量：

1(20Hr)

重量：	9.6kg (21.16lbs)

尺寸：	195L x 129W x155H x 179TH (mm) 7.68L x 5.08W x6.10H x 7.05TH (inch)

应用范围：不间断电源, 轮椅, 医疗设备

端子类型： B7

BC35-12 Standard   BC Series

		• Maintenance free(no water topping-up required).

		• No free acid(Non-spillable battery).

		• Can be used in any orientation(excluding used inverted).

		• Absorbent Glass Mat technology for efficient gas recombination.

						Internal Resistance: ≦13mΩ ( Fully Charged )

						Operating Temperature Range:

						Charge 0°C~40°C(32°F~104°F)

						 Discharge -20°C~50°C(-4°F~122°F)

						Storage. -20°C~40°C(-4°F~104°F)

						Container Material:  Standard: ABS( UL 94-HB) BC35-12(Dark gray color)  Optional: Flame Retardant ABS(UL 94-V0) BC35-12FR (Light gray color)

						All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr)
重量 : 9.6kg (21.16lbs)
尺寸 : 195L x 129W x155H x 179TH (mm)
                        7.68L x 5.08W x6.10H x 7.05TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut)
5秒钟放电最大电流 :350 A (5 sec.)
最大充电电流 : 10.5 A
应用范围 :
   不间断电源, 轮椅, 医疗设备
