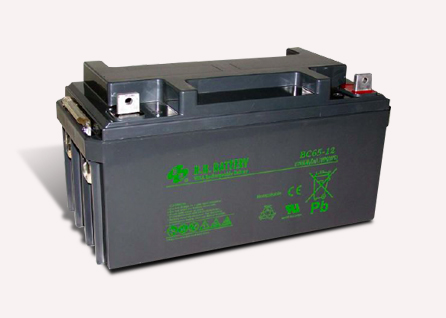

BC65-12 BC Series
额定容量: | 1(20Hr) |
重量: | 20kg (44.09lbs) |
尺寸: |
350L x 166W x174H x 174TH (mm) 13.78L x 6.54W x6.85H x 6.85TH (inch) |
BC65-12 BC Series
• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.
Internal Resistance: ≦12mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) BC65-12 Optional: Flame Retardant ABS(UL 94-V0) BC65-12FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 12 V
额定容量 : 1(20Hr)
重量 : 20kg (44.09lbs)
尺寸 : 350L x 166W x174H x 174TH (mm)
13.78L x 6.54W x6.85H x 6.85TH (inch)
端子类型 : B5 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :650 A (5 sec.)
最大充电电流 : 19.5 A
应用范围 : 不间断电源, 电信行业
