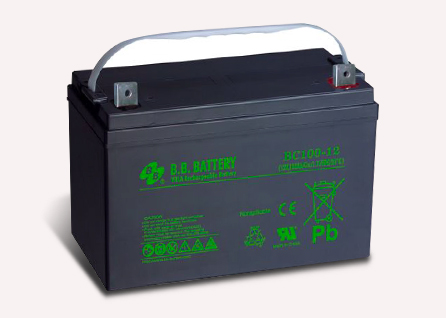

BC100-12 BC Series

电压： 12 V

额定容量：

1(20Hr)

重量：	28.5kg (62.8lbs)

尺寸：	329L x 172W x215H x B3:238, I2:218TH (mm) 12.95L x 6.77W x8.46H x B3:9.37, I2:8.60TH (inch)

应用范围：不间断电源, 电信行业

端子类型： I2 (optional), B3

BC100-12   BC Series

		• Maintenance free(no water topping-up required).

		• No free acid(Non-spillable battery).

		• Can be used in any orientation(excluding used inverted).

		• Absorbent Glass Mat technology for efficient gas recombination.

						Internal Resistance: ≦6.0mΩ ( Fully Charged )

						Operating Temperature Range:

						Charge 0°C~40°C(32°F~104°F)

						 Discharge -20°C~50°C(-4°F~122°F)

						Storage. -20°C~40°C(-4°F~104°F)

						Container Material:  Standard: ABS( UL 94-HB) BC100-12  Optional: Flame Retardant ABS(UL 94-V0) BC100-12FR

						All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr)
重量 : 28.5kg (62.8lbs)
尺寸 : 329L x 172W x215H x B3:238, I2:218TH (mm)
                        12.95L x 6.77W x8.46H x B3:9.37, I2:8.60TH (inch)
端子类型 : B3 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :85 A (5 sec.)
最大充电电流 : 25 A
应用范围 :
   不间断电源, 电信行业
