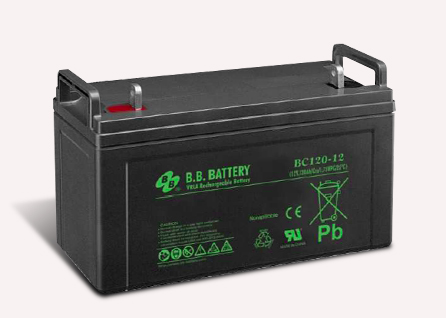

BC120-12 BC Series

电压： 12 V

额定容量：

1(20Hr)

重量：	35kg (77.16lbs)

尺寸：	407L x 173W x210H x 239TH (mm) 16.02L x 6.81W x8.27H x 9.41TH (inch)

应用范围：不间断电源, 电信行业

端子类型： I2 (optional), B4

BC120-12   BC Series

			• Maintenance free(no water topping-up required).

			• No free acid(Non-spillable battery).

			• Can be used in any orientation(excluding used inverted).

			• Flame-arrestor is installed to ensure safety.

			• Carry handles for easy installation.

			• Absorbent Glass Mat technology for efficient gas recombination.

							Internal Resistance: ≦5mΩ ( Fully Charged )

							Operating Temperature Range:

							Charge 0°C~40°C(32°F~104°F)

							 Discharge -20°C~50°C(-4°F~122°F)

							Storage. -20°C~40°C(-4°F~104°F)

							Container Material:  Standard: ABS( UL 94-HB) BC120-12  Optional: Flame Retardant ABS(UL 94-V0) BC120-12FR

							All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr)
重量 : 35kg (77.16lbs)
尺寸 : 407L x 173W x210H x 239TH (mm)
                        16.02L x 6.81W x8.27H x 9.41TH (inch)
端子类型 : B4 (Fitting M6 bolt & nut) I2 is optional
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 36.0 A
应用范围 :
   不间断电源, 电信行业
