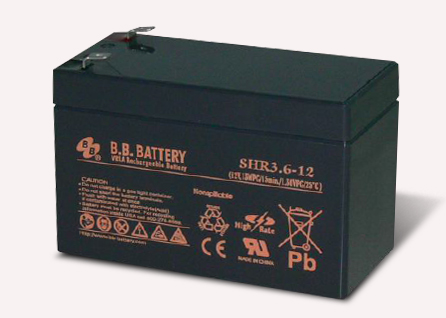

SHR3.6-12 SHR Series - For High Rate Use

电压： 12 V

重量：	0.93kg (2.05lbs)

尺寸：	102L x 48W x65.5H x 70.5TH (mm) 4.02L x 1.89W x2.58H x 2.78TH (inch)

应用范围：不间断电源, 玩具车, 电源包, 储能系统, 鱼捞作业灯助推器

端子类型： T2

SHR3.6-12   SHR Series - For High Rate Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for high rate usage.

	• Absorbent Glass Mat technology for efficient gas recombination.

	• The power density at 2min~15min discharging rate is 50% higher than BP series.

					Internal Resistance: ≦27mΩ ( Fully Charged )

					Operating Temperature Range:

					Charge 0°C~40°C(32°F~104°F)

					 Discharge -20°C~50°C(-4°F~122°F)

					Storage. -20°C~40°C(-4°F~104°F)

					Container Material:  Standard: ABS( UL 94-HB) SHR3.6-12  Optional: Flame Retardant ABS(UL 94-V0) SHR3.6-12

					All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 0.93kg (2.05lbs)
尺寸 : 102L x 48W x65.5H x 70.5TH (mm)
                        4.02L x 1.89W x2.58H x 2.78TH (inch)
端子类型 : T2 (Faston Tab 250)
5秒钟放电最大电流 :45 A (5 sec.)
最大充电电流 : 1 A
应用范围 :
   不间断电源, 玩具车, 电源包, 储能系统, 鱼捞作业灯助推器
