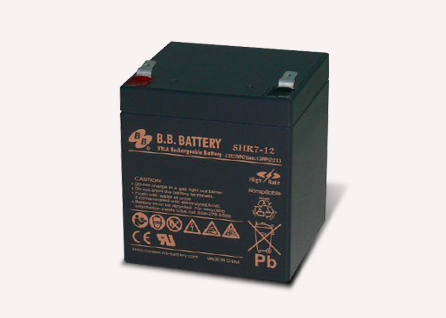

SHR7-12 SHR Series - For High Rate Use

电压： 12 V

重量：	1.84kg (4.06lbs)

尺寸：	90L x 70W x102H x 106TH (mm) 3.54L x 2.76W x4.02H x 4.17TH (inch)

应用范围：不间断电源, 玩具车, 应急灯, 电源包, 鱼捞作业灯助推器

端子类型： T1 (optional), T2

SHR7-12   SHR Series - For High Rate Use

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for high rate usage.

	• It's design life is up to 5 years in floating applications.

	• Absorbent Glass Mat technology for efficient gas recombination.

	• The power density at 2min~15min discharging rate is 50% higher than BP series.

					Internal Resistance: ≦20mΩ ( Fully Charged )

					Operating Temperature Range:

					Charge 0°C~40°C(32°F~104°F)

					 Discharge -20°C~50°C(-4°F~122°F)

					Storage. -20°C~40°C(-4°F~104°F)

					Container Material:  Standard: ABS( UL 94-HB) SHR7-12  Optional: Flame Retardant ABS(UL 94-V0) SHR7-12

					All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 1.84kg (4.06lbs)
尺寸 : 90L x 70W x102H x 106TH (mm)
                        3.54L x 2.76W x4.02H x 4.17TH (inch)
端子类型 : T2(Faston Tab 250) T1 is optional
5秒钟放电最大电流 :90 A (5 sec.)
最大充电电流 : 1.80 A
应用范围 :
   不间断电源, 玩具车, 应急灯, 电源包, 鱼捞作业灯助推器
