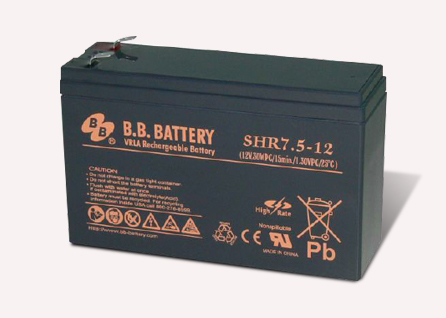

SHR7.5-12 SHR Series - For High Rate Use
重量: | 2.05kg (4.52lbs) |
尺寸: |
151L x 51W x94H x 100TH (mm) 5.94 L x 2.01W x3.70 H x 3.94TH (inch) |
SHR7.5-12 SHR Series - For High Rate Use
• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Can be used in any orientation(excluding used inverted).
• The battery is designed for high rate usage.
• Absorbent Glass Mat technology for efficient gas recombination.
• The power density at 2min~15min discharging rate is 50% higher than BP series.
Internal Resistance: ≦18mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) SHR7.5-12 Optional: Flame Retardant ABS(UL 94-V0) SHR7.5-12
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 12 V
重量 : 2.05kg (4.52lbs)
尺寸 : 151L x 51W x94H x 100TH (mm)
5.94 L x 2.01W x3.70 H x 3.94TH (inch)
端子类型 : T1 (Faston Tab 187) T2 is optional
5秒钟放电最大电流 :105 A (5 sec.)
最大充电电流 : 2.1 A
应用范围 : 不间断电源, 玩具车, 实验室设备, 电源包, 鱼捞作业灯助推器
