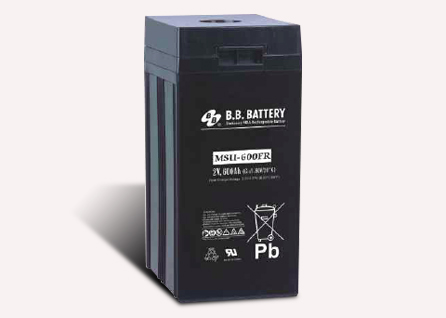

MSU-600 MSU Series
额定容量: | 1(10Hr) |
重量: | 36.3kg (80.0lbs) |
尺寸: |
241L x 172W x331H x 359TH (mm) 9.49L x 6.77W x13.03H x 14.13TH (inch) |
MSU-600 MSU Series
Internal Resistance: ≦0.7mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) MSU-600 Optional: Flame Retardant ABS(UL 94-V0) MSU-600FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 2 V
额定容量 : 1(10Hr)
重量 : 36.3kg (80.0lbs)
尺寸 : 241L x 172W x331H x 359TH (mm)
9.49L x 6.77W x13.03H x 14.13TH (inch)
端子类型 : B6 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :2640 A (5 sec.)
最大充电电流 : 150 A
应用范围 : 不间断电源, 电信行业, 储能系统, 电信局
