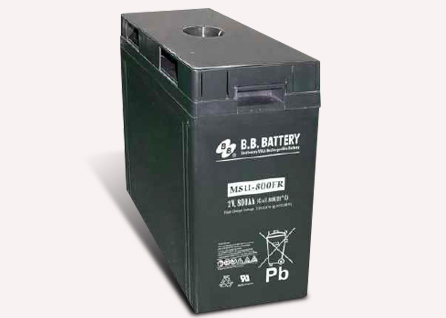

MSU-800 MSU Series

电压： 2 V

额定容量：

1(10Hr)

重量：	45.0kg (99.2lbs)

尺寸：	301L x 175W x331H x 359TH (mm) 11.86L x 6.89W x13.03H x 14.13TH (inch)

应用范围：不间断电源, 电信行业, 储能系统, 电信局

端子类型： I3 (optional), B6

MSU-800   MSU Series

	• Sealed structure, no electrolyte leakage or spill.

	• High performance alloy to secure corrosion-proof feature.

	• Unique electrolytes system achieves maximum service acceptance.

	• Electrolyte with gel technology.

					Internal Resistance: ≦0.6mΩ ( Fully Charged )

					Operating Temperature Range:

					Charge 0°C~40°C(32°F~104°F)

					 Discharge -20°C~50°C(-4°F~122°F)

					Storage. -20°C~40°C(-4°F~104°F)

					Container Material:  Standard: ABS( UL 94-HB) MSU-800  Optional: Flame Retardant ABS(UL 94-V0) MSU-800FR

					All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 2 V
额定容量 :  1(10Hr)
重量 : 45.0kg (99.2lbs)
尺寸 : 301L x 175W x331H x 359TH (mm)
                        11.86L x 6.89W x13.03H x 14.13TH (inch)
端子类型 : B6 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :3200 A (5 sec.)
最大充电电流 : 200 A
应用范围 :
   不间断电源, 电信行业, 储能系统, 电信局
