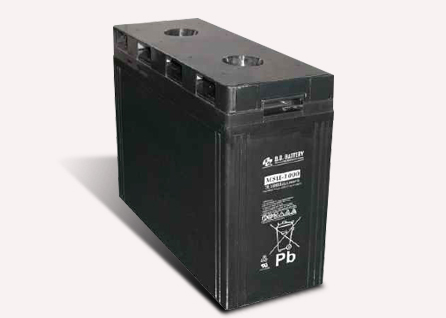

MSU-1000 MSU Series
额定容量: | 1(10Hr) |
重量: | 60.5kg (133.4lbs) |
尺寸: |
410L x 175W x330H x 358TH (mm) 15.79L x 6.89W x12.99H x 14.09TH (inch) |
MSU-1000 MSU Series
Internal Resistance: ≦0.5mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0°C~40°C(32°F~104°F)
Discharge -20°C~50°C(-4°F~122°F)
Storage. -20°C~40°C(-4°F~104°F)
Container Material: Standard: ABS( UL 94-HB) MSU-1000 Optional: Flame Retardant ABS(UL 94-V0) MSU-1000FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 2 V
额定容量 : 1(10Hr)
重量 : 60.5kg (133.4lbs)
尺寸 : 410L x 175W x330H x 358TH (mm)
15.79L x 6.89W x12.99H x 14.09TH (inch)
端子类型 : B6 (Fitting M8 bolt & nut) I3 is optional
5秒钟放电最大电流 :400 A (5 sec.)
最大充电电流 : 250 A
应用范围 : 不间断电源, 电信行业, 储能系统, 电信局
