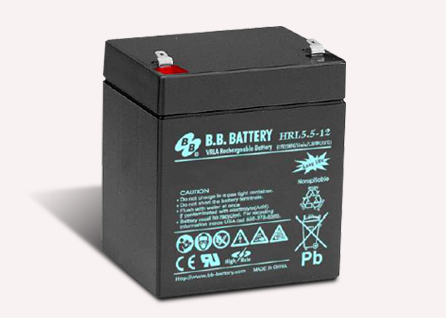

HRL5.5-12 HRL Series

电压： 12 V

重量：	1.8kg (3.97lbs)

尺寸：	90L x 70W x102H x 106TH (mm) 3.54L x 2.76W x4.02H x 4.17TH (inch)

应用范围：不间断电源, 医疗设备, 风能, 实验室设备, 车载应急电源, 数据中心

端子类型： T1, T2 (optional)

HRL5.5-12   HRL Series

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• Absorbent Glass Mat technology for efficient gas recombination.

				Internal Resistance: ≦27mΩ ( Fully Charged )

				Operating Temperature Range:

				Charge 0°C~40°C(32°F~104°F)

				 Discharge -20°C~50°C(-4°F~122°F)

				Storage. -20°C~40°C(-4°F~104°F)

				Container Material:  Standard: ABS( UL 94-HB) HRL5.5-12  Optional: Flame Retardant ABS(UL 94-V0) HRL5.5-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 1.8kg (3.97lbs)
尺寸 : 90L x 70W x102H x 106TH (mm)
                        3.54L x 2.76W x4.02H x 4.17TH (inch)
端子类型 : T1 (Faston Tab 187) T2 is optional
5秒钟放电最大电流 :75 A (5 sec.)
最大充电电流 : 1.5 A
应用范围 :
   不间断电源, 医疗设备, 风能, 实验室设备, 车载应急电源, 数据中心
