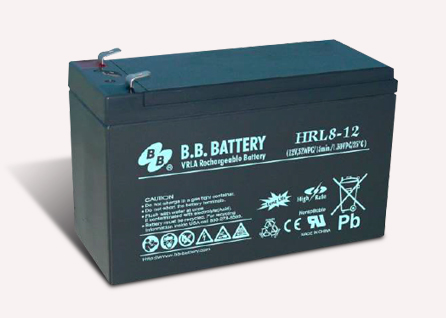

HRL8-12 HRL Series

电压： 12 V

尺寸：	151L x 65W x94H x 100TH (mm) 5.94L x 2.56W x3.70H x 3.94TH (inch)

应用范围：不间断电源, 医疗设备, 风能, 实验室设备, 电源包, 车载应急电源, 数据中心

端子类型： T1 (optional), T2

HRL8-12   HRL Series

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for high rate usage.

	• Long life expectancy up to 10 years in floating applications.

	• Absorbent Glass Mat technology for efficient gas recombination.

	• The power density at 5min~15min discharging rate is 30% higher than BP series.

				Internal Resistance: ≦20mΩ ( Fully Charged )

				Operating Temperature Range:

				Charge 0°C~40°C(32°F~104°F)

				 Discharge -20°C~50°C(-4°F~122°F)

				Storage. -20°C~40°C(-4°F~104°F)

				Container Material:  Standard: ABS( UL 94-HB) HRL8-12  Optional: Flame Retardant ABS(UL 94-V0) HRL8-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
尺寸 : 151L x 65W x94H x 100TH (mm)
                        5.94L x 2.56W x3.70H x 3.94TH (inch)
端子类型 : T2 (Faston Tab 187) T1 is optional
5秒钟放电最大电流 :105 A (5 sec.)
最大充电电流 : 2.1 A
应用范围 :
   不间断电源, 医疗设备, 风能, 实验室设备, 电源包, 车载应急电源, 数据中心
