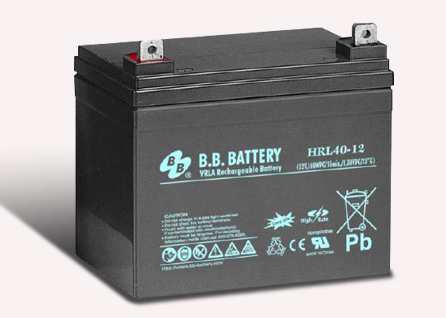

HRL40-12 HRL Series

电压： 12 V

尺寸：	195L x 129W x155H x B7:179, I2:168TH (mm) 7.68L x 5.08W x6.10H x B7:7.05, I2:6.61TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备, 风能, 车载应急电源

端子类型： B7

HRL40-12   HRL Series

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for high rate usage.

	• Absorbent Glass Mat technology for efficient gas recombination.

	• The power density at 5min~15min discharging rate is 30% higher than BP series.

				Internal Resistance: ≦6mΩ ( Fully Charged ) < 3% per month (25°C)

				Operating Temperature Range:

				Charge 0°C~40°C(32°F~104°F)

				 Discharge -20°C~50°C(-4°F~122°F)

				Storage. -20°C~40°C(-4°F~104°F)

				Container Material:  Standard: ABS( UL 94-HB) HRL40-12  Optional: Flame Retardant ABS(UL 94-V0) HRL40-12FR

	All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
尺寸 : 195L x 129W x155H x B7:179, I2:168TH (mm)
                        7.68L x 5.08W x6.10H x B7:7.05, I2:6.61TH (inch)
端子类型 : B7 (Fitting M6 bolt & nut)
5秒钟放电最大电流 :495 A (5 sec.)
最大充电电流 : 11.4 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备, 风能, 车载应急电源
