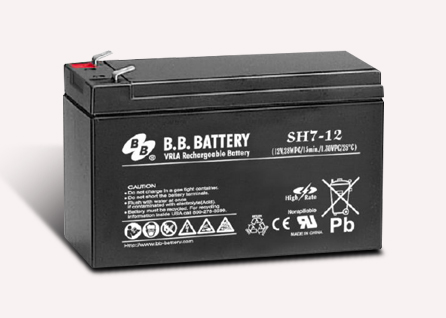

SH7-12 SH Series

电压： 12 V

额定容量：

1(20Hr), 1(10Hr)

重量：	2.22kg (4.89lbs)

尺寸：	151L x 65W x94H x 100TH (mm) 5.94L x 2.56W x3.70H x 3.94TH (inch)

应用范围：不间断电源, 玩具车, 电动风扇, 电子门铃

端子类型： T1 (optional), T2, B0 (optional)

SH7-12   SH Series

	• Maintenance free(no water topping-up required).

	• No free acid(Non-spillable battery).

	• Can be used in any orientation(excluding used inverted).

	• The battery is designed for high rate usage.

	• Absorbent Glass Mat technology for efficient gas recombination.

					Internal Resistance: ≦22mΩ ( Fully Charged )

					Operating Temperature Range:

					Charge 0°C~40°C(32°F~104°F)

					 Discharge -20°C~50°C(-4°F~122°F)

					Storage. -20°C~40°C(-4°F~104°F)

					Container Material:  Standard: ABS( UL 94-HB) SH7-12L  Optional: Flame Retardant ABS(UL 94-V0) SH7-12L FR

					All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr), 1(10Hr)
重量 : 2.22kg (4.89lbs)
尺寸 : 151L x 65W x94H x 100TH (mm)
                        5.94L x 2.56W x3.70H x 3.94TH (inch)
端子类型 : T2 (Faston Tab 187) T1 is optional
5秒钟放电最大电流 :99 A (5 sec.)
最大充电电流 : 2.1 A
应用范围 :
   不间断电源, 玩具车, 电动风扇, 电子门铃
