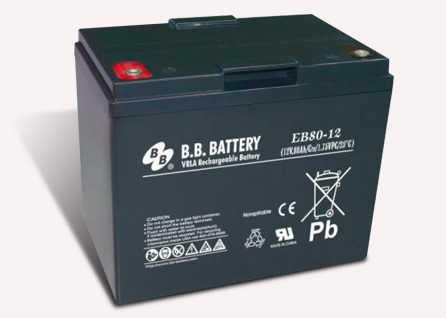

EB80-12 EB Series - For Mobility Use

电压： 12 V

额定容量：

1(20Hr)

重量：	25.5kg (56.22lbs)

尺寸：	260L x 168W x215H x 215TH (mm) 10.24L x 6.61W x8.46H x 8.46TH (inch)

应用范围：高尔夫球车, 不间断电源, 轮椅, 割草机, 电动踏板车

端子类型： I2

EB80-12   EB Series - For Mobility Use

	• Absorbent Glass Mat technology for efficient gas recombination

	• Maintenance free(no water topping-up required)

	• No free acid(Non-spillable battery)

	• Can be used in any orientation(excluding used inverted)

	• The battery is designed for high power & high cyclic usage

	• Low self-discharge rate, lower than 3% capacity loss per month

		Internal Resistance: ≦6mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0°C~40°C(32°F~104°F)

		 Discharge -20°C~50°C(-4°F~122°F)

		Storage. -20°C~40°C(-4°F~104°F)

		Container Material:  Standard: ABS( UL 94-HB) EB80-12  Optional: Flame Retardant ABS(UL 94-V0) EB80-12FR

		All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
额定容量 :  1(20Hr)
重量 : 25.5kg (56.22lbs)
尺寸 : 260L x 168W x215H x 215TH (mm)
                        10.24L x 6.61W x8.46H x 8.46TH (inch)
端子类型 : I2 (M6 Female Thread)
5秒钟放电最大电流 :800 A (5 sec.)
最大充电电流 : 24.0 A
应用范围 :
   高尔夫球车, 不间断电源, 轮椅, 割草机, 电动踏板车
