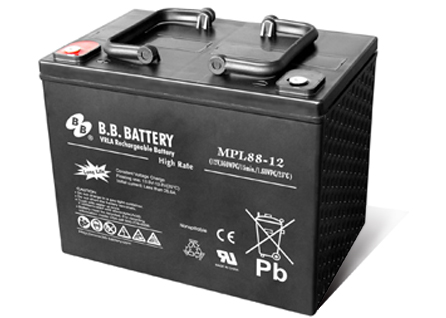

MPL88-12 Handel MPL Series - For High Rate, Long Life Standby Use

电压： 12 V

重量：	26.4kg (58.2lbs)

尺寸：	261L x 173W x200H x B5:224, I2:207TH (mm) 10.28L x 6.81W x7.87H x B5:8.82, I2:8.15TH (inch)

应用范围：高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备

端子类型： I2 (optional), B5

MPL88-12 Handel   MPL Series - For High Rate, Long Life Standby Use

					• Maintenance free(no water topping-up required).

					• No free acid(Non-spillable battery).

					• Can be used in any orientation(excluding used inverted).

					• The battery is designed with very lower resistance and exceeding high power performance.

					• Long life expectancy 10 years in float application.

					• Flame-arrestor is installed to ensure safety.

					• Carry handels for easy installation.

					• Absorbent Glass Mat technology for efficient gas recombination.

		Short Circuit Current: 2300 A

		Internal Resistance: ≦4mΩ ( Fully Charged )

		Operating Temperature Range:

		Charge 0 C~50 C(32 F~122 F)

		 Discharge -20 C~60 C(-4 F~140 F)

		Storage. -20 C~50 C(-4 F~122 F)

		Container Material:  Standard: PP( UL 94-HB) MPL88-12  Optional: Flame Retardant ABS(UL 94-V0) MPL88-12FR

			All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.

电压 : 12 V
重量 : 26.4kg (58.2lbs)
尺寸 : 261L x 173W x200H x B5:224, I2:207TH (mm)
                        10.28L x 6.81W x7.87H x B5:8.82, I2:8.15TH (inch)
端子类型 : B5 (Fitting M6 bolt & nut) I2 is optional
最大充电电流 : 25.8 A
应用范围 :
   高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备
