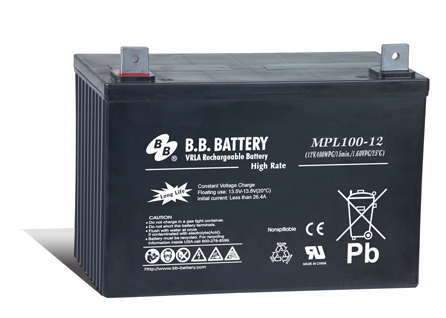

MPL100-12 Standard MPL Series - For High Rate, Long Life Standby Use
重量: | 30.2kg (66.6lbs) |
尺寸: |
306L x 173W x200H x B3:230, I2:207TH (mm) 12.05L x 6.81W x7.87H x B3:9.06, I2:8.15TH (inch) |
MPL100-12 Standard MPL Series - For High Rate, Long Life Standby Use
Short Circuit Current: 2450 A
Internal Resistance: ≦3.5mΩ ( Fully Charged )
Operating Temperature Range:
Charge 0 C~50 C(32 F~122 F)
Discharge -20 C~60 C(-4 F~140 F)
Storage. -20 C~50 C(-4 F~122 F)
Container Material: Standard: PP( UL 94-HB) MPL100-12 Optional: Flame Retardant ABS(UL 94-V0) MPL100-12FR
All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.
电压 : 12 V
重量 : 30.2kg (66.6lbs)
尺寸 : 306L x 173W x200H x B3:230, I2:207TH (mm)
12.05L x 6.81W x7.87H x B3:9.06, I2:8.15TH (inch)
端子类型 : B5 (Fitting M6 bolt & nut) I2 is optional
最大充电电流 : 29.5 A
应用范围 : 高尔夫球车, 不间断电源, 电信行业, 有线电视, 发电站, 船舶设备
