BPS Series - For General Use
BPS Series - For General Use

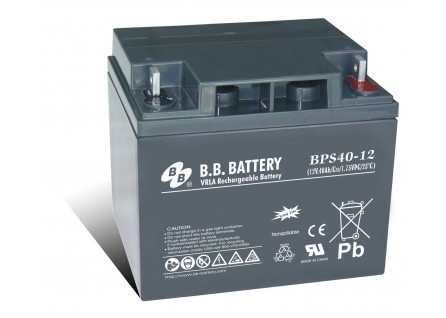

BPS40-12 BPS Series - For General Use

电压: 12 V
额定容量 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)
重量 14.30kg (31.53lbs)
尺寸 197L x 165W x171H x 171TH (mm)
7.76L x 6.50W x6.73H x 6.73TH (inch)
应用范围: 高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备
端子类型: I1 (optional),  I2 (optional),  B2

BPS40-12 BPS Series - For General Use

• Maintenance free(no water topping-up required).
• No free acid(Non-spillable battery).
• Low self-discharge rate, lower than 3% capacity loss per month.
• Can be used in any orientation(excluding used inverted).
• Absorbent Glass Mat technology for efficient gas recombination.


Internal Resistance: ≦27mΩ ( Fully Charged )


Operating Temperature Range:



Charge 0°C~40°C(32°F~104°F)

 Discharge -20°C~50°C(-4°F~122°F)

Storage. -20°C~40°C(-4°F~104°F)


Container Material:  Standard: ABS( UL 94-HB) BP7-12  Optional: Flame Retardant ABS(UL 94-V0) BP7-12FR




All data and artworks shall be changed without prior notice, BB reserves the right to explain and update the information contained hereinto.


电压 : 12 V

额定容量 : 1(20Hr), 1(10Hr), 1(5Hr), 1(1Hr)

重量 : 14.30kg (31.53lbs)

尺寸 : 197L x 165W x171H x 171TH (mm)
                        7.76L x 6.50W x6.73H x 6.73TH (inch)

端子类型 : B2 (Fitting M5 bolt & nut) , I1 and I2 are optional

5秒钟放电最大电流 :600 A (5 sec.)

最大充电电流 : 12 A

应用范围 : 高尔夫球车, 不间断电源, 轮椅, 割草机, 医疗设备
